Corrolink-S Structural Insulated Roof Panels

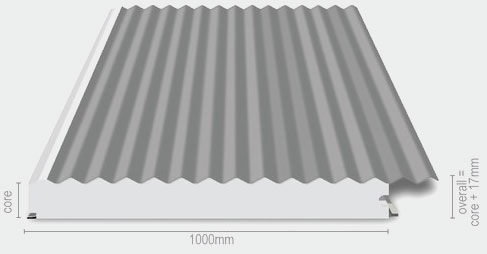

With Modern sleek lines, an extremely modern look is achieved with Corrolink-S Structural Insulated Roof Panels, with a corrugated top skin and a flat ceiling face available in 3 different finishes. Available in 6 thicknesses, with our thickest roof panel at 180mm, it achieves up to RT5.0, a huge insulation level for your home.

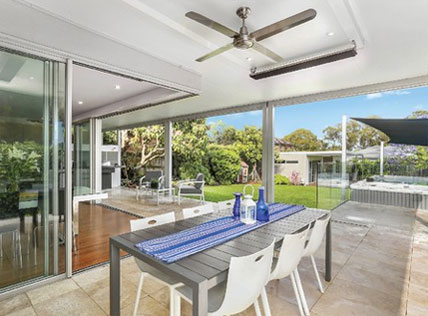

With a minimum roof pitch of only 3° and a cover width of 1000 mm Corrolink-S has amazing usage flexibility, including complete homes, outdoor living and veranda applications.

Key Features & Benefits

  • Minimum roof pitch only 3°
  • Less unsightly support beams
  • Lightweight and easy to install
  • Wiring services run through core duct
  • Fire retardant EPS insulated core dramatically reduces
  • radiant heat transfer, mould and condensation
  • Fire flashings available to satisfy up to BAL 29 for AS3959 (for construction of buildings in bushfire prone areas)
  • Pearl White ceiling surface available in Smooth, Stucco embossed or Micraline
  • ALSO AVAIABLE IS THE DOUBLE CORROLINK S PANELS with it’s corrugated profile on both top and ceiling faces and is available in 11 colours and 4 thickness options, so you can achieve the look, span and insulation levels you desire.

Contact us today for more technical information, colour availability and pricing.

Contact us for technical advice and a free quote 1300 558 397

RANGE CHART

The chart below outlines the range levels of height and their restrictions with load weight.
