EASYCLICK PC **NEW**

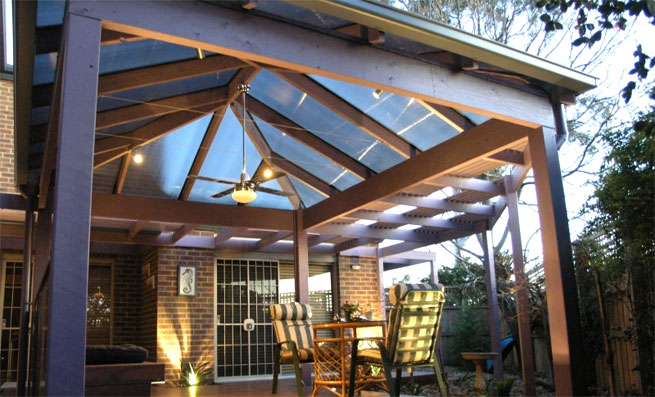

EasyClick PC is an ideal option for glazing and roofing in Patios, Greenhouses and Carports. EasyClick PC is the perfect product for DIY. Replace your tired old pergola roof with the NEW EasyClick PC.
Easily retrofitted to structures designed for profiled sheeting with no
additional support required.

Features & Benefits
  • Easy Handling
  • Light Weight
  • Quick Assembly
  • Outstanding Light Transmission with UV protection
  • Thermally Efficient 4-wall construction
  • Strong
  • Highly Impact Resistant
  • Waterproof

EasyClick PC SPECIFICATIONS

  • Thickness 16mm
  • Width 250mm
  • Lengths 2.0, 2.5, 3.0, 3.5, 4.0, 4.5, 5.0, 5.5, 6.0, 7.0m
  • Colours Clear, Opal, Grey
  • UV Protection One Side
  • Light Transmission Clear – 80%, Opal – 50%, Grey – 40%
  • Shade Factor Clear – 2, Opal – 6, Grey – 7

    Shade factors shown provide an indication of the heat absorbed or reflected by the EasyClick sheet. The 4 walls and hammered glass finish provide exceptional performance in comparison with single layered sheeting.
  • Thermal Insulation U = 2.1 W/m2K
  • End Cap Lengths 3.0m and 6.0m
  • Screws Wafer 25mm C3 T17 Timber
    Wafer 22mm C3 Tek Steel
  • Shade Factor Key 0 = Full Light, 10 = Full Shade

LEXAN THERMOCLEAR

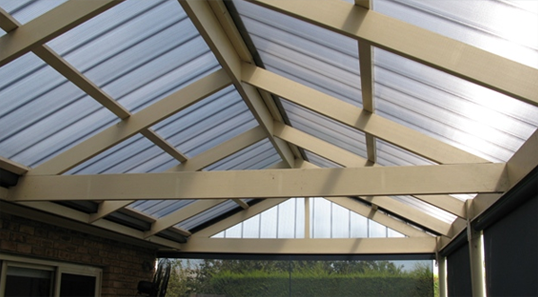

Lexan Thermoclear  Multiwall polycarbonate sheeting is a high quality, low maintenance glazing material that is built to last.  Based on Lexan polycarbonate resin, it delivers high impact strength, an excellent balance of low weight and high stiffness and natural “water – clear” transparency.

It is suitable for use in bushfire prone zones BAL’s 19 and below. It is flame resistant, self extinguishing, stops the spread of flame and develops minimal smoke.

Lexan* Thermoclear* blocks 99.9% of harmful UV radiation. The proprietary surface treatment represents the next generation in surface coating technology. Both sides of the sheeting feature UV protection giving superior resistance to outdoor weathering and greater design flexibility.

Sheet Colour, Sizes and Spanning

  • Colour 10mm-Clear, Opal, Bronze, Grey, Metalic Grey
    16mm-Clear, Opal
  • Colour 10mm-Clear, Opal, Bronze, Grey, Metalic Grey
    16mm-Clear, Opal
  • Lengths 2.0m, 2.5m, 3.0m, 3.5m, 4.0m, 4.5m, 5.0m, 5.5m, 6.0m, 7.0m
  • Other sizes and colour may be available.
    Please confirm availability before ordering.
  700mm 1050mm
  Rafters Purlins Rafters Purlins
10mm 720mm not required 1070mm not required
16mm 720mm not required 1070mm not required
  • Sheet mass
  • 10mm 1700gsm
  • 16mm 2700gsm

Please contact us for more Multiwall options

Contact us for technical advice and a free quote 1300 558 397

RANGE CHART

The chart below outlines the range levels of height and their restrictions with load weight.
